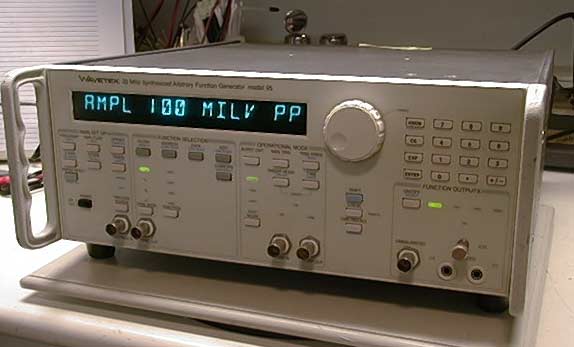

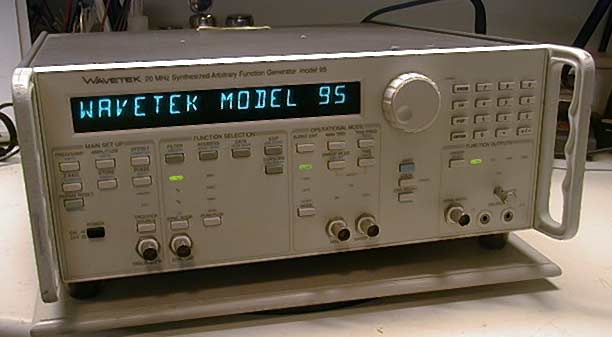

Wavetek 95

 20 MHz Arbitrary Function Generator

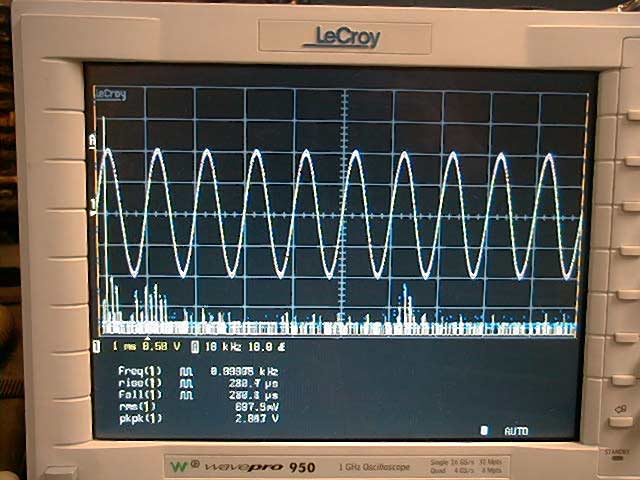

This arbitrary function generator covers a large bandwidth; one MHz (.001Hz) to twenty MHz (20,000,000Hz). At the touch of a button the Wavetek 95 performs as a standard function generator as well as fully programmable arbitrary wave generator.  In working with this instrument  I was impressed with it's ease of use, and versatility as an all purpose (Bench) function generator.  Every feature is so intuitive, and accessible.  The construction quality of the Wavetek 95 is very nice with a mother board and plug-in modules for ease of service. This fully tested instrument is in excellent electrical and physical condition. The only item of note are some scrapes on the handles.

20 MHz Arbitrary/Function Generator

  • 1 MHz to 20 MHz range for Standard Waveforms
  • 10 ppm Frequency Accuracy
  • 15 Vp-p Output into 50 ohm
  • 12-Bit (4,096 point) Vertical Resolution
  • Trigger, Sweep, Pulse and Modulation Capability
  • Frequency Range: 20 Hz to 20 MHz synthesized; 1 MHz to 20 MHz unsynthesized; 1 MHz to 1 MHz 600 ohm or balanced

95 Performance Characteristics

Form Factor

Benchtop

Number of Channels

1 ch

Waveforms (Sine, Square, etc.)

Arbitrary,Pulse,Ramp,Sine,Square,Triangle

Minimum Frequency

1 MHz

Maximum Frequency, Sine wave

20 MHz

Maximum Frequency, Square Wave

20 MHz

Maximum Frequency, Triangle Wave

20 kHz

Maximum Frequency, Ramp

20 kHz

Maximum Frequency, Pulse

20 kHz

Simultaneous Maximum Sampling Rate/ch

20 MSa/s

Frequency Accuracy

0.01 %

Minimum Output Voltage

1 mV

Maximum Output Voltage

15 V

Waveform Resolution

4 digits

Output Accuracy

2 %

Output Impedance

50 Ohm

Flatness

0.75 dB

Modulation

AM,FM,SCM

Sweep Modes

Linear,Log

Trigger Modes

Burst,Continuous,Gate,Trigger

95 Measurements/Features

Internal trigger generator
Analog/Digital Filtering
Phase-lock
Output imp of 50/75/135 ohms
Waveform hold function
Return-to-start function
12-bit vertical Resolution


95 Programmability/Connectivity

User Interface

Proprietary

Ports to Peripheral Devices

IEEE488.1

Test Pattern Storage

10 Waveforms

95 Product Links

Fluke Precision (Fluke) / Y8100
Clamp-On DC or AC Current Probe

Probe

95 Warranty and Calibration

Calibration Period

1yr

Warranty

1 yr

95 Compliance

CE Compliance

Not on file

UL Compliance

Not compliant

95 Power Requirements

Input Power

Universal (Auto Sense and Switch)

95 Physical Dimensions

Width

356 mm(14.01 in)

Height

133 mm(5.23 in)

Length

432 mm(17 in)

Weight

7.7 kg(16.97 lb)





























































Warranty

As our many customers will attest, we will do our very best to resolve any customer problems.  But our official policy is: All items sold are guaranteed against D.O.A. only. All claims must be made within 3 days of receipt.   All warranties are void if the calibration / warranty seals are broken.

Ascent Concepts and Technologies is a Research & Development Lab.  As a service to the companies and institutions we work with, we broker their excess equipment & acting as application specialists on their new equipment needs.  We are now offering quality used equipment to the public with the same level of professionalism and service.   Please feel free to email at thomasknox@ascentconcepts.com or call Thomas @ 1-303-554-0307 with any Technical questions. Please feel free to email at waltwhite@ascentconcepts.com or call Walt @ 1-720-276-8288 with any Shipping or Logistical questions.   We make every effort to evaluate and guarantee our equipment.  Although we do not provide NIST traceable calibration, we do have in house calibration equipment and will make every effort to test and verify performance on equipment we sell.  All equipment we sell comes with a three day right of return unless stated otherwise.



Shipping Policy

 Buyer will pay $20.00 packing & shipping in Continental USA.  We will make every effort to ship within 24 hours of receipt of payment.  We ship with FedEx & UPS only. We will be glad to ship with other carriers using the purchasers shipping account.  Please contact us to make any special shipping arrangements. For shipping rate research, our shipping address is Boulder, CO USA ---- Zip Code is 80305.

  Foreign buyers:  Unless special provisions have been made, you are responsible for making your own shipping arrangements and all costs related to customs, duties & special packaging requirements.  Please do not ask us to quote you international shipping rates. Use the address information above to research you own shipping rates. You can email waltwhite@ascentconcepts.com to get the packaging fee, package weight and size for your research. Items sold outside the USA are sold as is.





 Payment Policy

 We accept Credit Card payment through Paypal.   We accept Cashiers Check or Money Orders.
