Videotek RS-103A
Video Switcher

w/3 Audio Inputs
Channel and Breakaway

Characteristics:

FEATURES
Wide bandwidth for high resolution applications (±1.0 dB at 40 MHz).
DC restored output amplifier.
High speed clamping provides excellent hum rejection.
Low return loss >55 dB at 5 MHz.
+24 dBm audio headroom.
3 audio channels per input, balanced or unbalanced (RS-103A).
Transformer coupled audio outputs, balanced or unbalanced (RS-103A).
Two channel audio breakaway. Auxiliary channel can be programmed to follow video or audio breakaway (RS-103A).
Microprocessor control with battery backup.
Serial data bus for communication within the system and remote control.
Data bus interconnection via RJ11C telephone connectors.
System expandable horizontally to 40 x 1 and vertically to 30 x 10.
1 RU (1.75") high, rack mountable.
Standards Available: NTSC and PAL


The RS-103A was designed to be the most versatile 10 x 1 routing switcher available. Excellent signal quality, remote control options and RS-422 control capability has been engineered into these switchers. Multiple switchers can be linked together via the Videotek Data Bus to form various configurations such as matrix, component and expanded input systems. Video only or three channel audio-follow-video applications may be built with the RS-103 series. As system requirements change, these switchers may be field-upgraded to new configurations.

Equipment Notes:

Rack Mount Tabs have been removed.

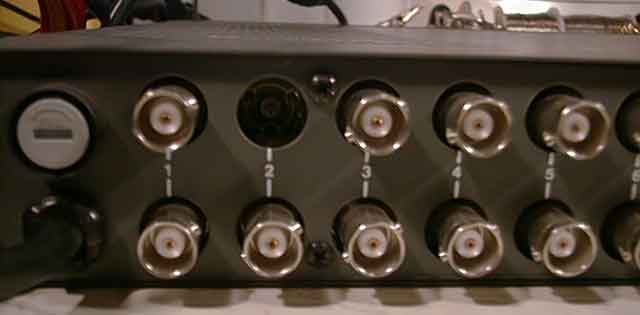

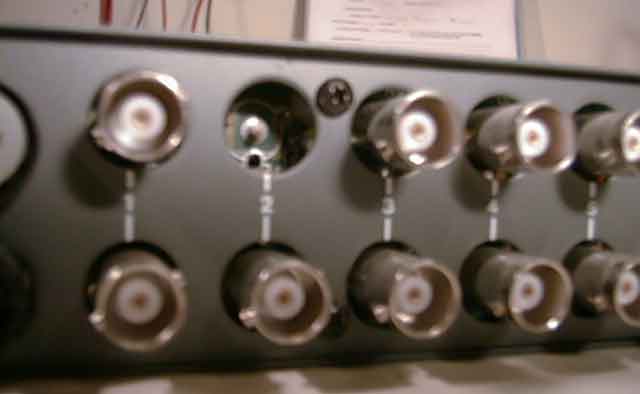

One B-n-C Connector is broken off the back.  Unit powers up but is not tested beyond that.



Warranty:

This item is sold with a 3 Day Satisfaction Guarantee.  So bid with confidence.
As our many customers will attest, we will do our very best to resolve any customer problems. But our official policy is:

This item comes with a 3 day right of return policy.
All returns must be made within 3 days of receipt.
All warranties are void if the calibration / warranty seals are broken.
Equipment must be shipped correctly and returned with all accessories.
Customer is responsible for all shipping charges on returns.
Foreign Buyers please be aware: We offer no warranty or returns on items shipped outside the USA

Payment, Shipping & Bidding:

Buyer will pay $20.00 packing and shipping in the continental United States. Payments accepted are Paypal, cashiers checks and money orders only.  No international buyers unless Paypal verified.  Please feel free to contact us if you need other arrangements.

We will make every effort to ship within 24 hours of receipt of payment. We ship with FedEx & UPS only. We will be glad to ship with other carriers using the purchasers shipping account. Please contact us to make any special shipping arrangements. For shipping rate research, our shipping address is Boulder, CO USA ---- Zip Code is 80305.

Many of our auctions have a set packaging and shipping fee.  This set fee makes the transaction easier and allows the purchaser to send payment at once without having to wait for a shipping total.  This is our best guess on an unpackaged item.  Please consider the total with shipping when you are bidding.

Foreign buyers: Unless special provisions have been made, you are responsible for making your own shipping arrangements and all costs related to customs, duties & special packaging requirements. Please do not ask us to quote you international shipping rates. Use the address information above to research you own shipping rates. You can email sales@ascentconcepts (no spam) .com to get the packaging fee, package weight and size for your research. Items sold outside the USA are sold as is.

Bidders - with no feedback or less then 80% positive feedback must contact us through the eBay email system before placing a bid. We will reply through the same system, documenting that you have been approved to bid. If you do not follow these procedures, your bid will be cancelled.  All other bidders, bid with confidence.



About Us:

Ascent Concepts and Technologies is a Research & Development Lab. As a service to the companies and institutions we work with, we broker their excess equipment & act as application specialists on their new equipment needs. We are now offering quality used equipment to the public with the same level of professionalism and service.

Please feel free to email at thomasknox@ascentconcepts (no spam) .com or call Thomas @ 1-303-554-0307 with any Technical questions. Please feel free to email at waltwhite@ascentconcepts (no spam) .com or call Walt @ 1-720-276-8288 with any Shipping or Logistical questions. We make every effort to evaluate and guarantee our equipment. Although we do not provide NIST traceable calibration, we do have extensive in house calibration equipment and make every effort to test and verify performance on equipment we sell. However we do not warranty any items shipped outside the USA.
