Agilent Shielded RF Test Enclosure
GS-80 Pneumatic Test Cell
TC-5942B

Characteristics:

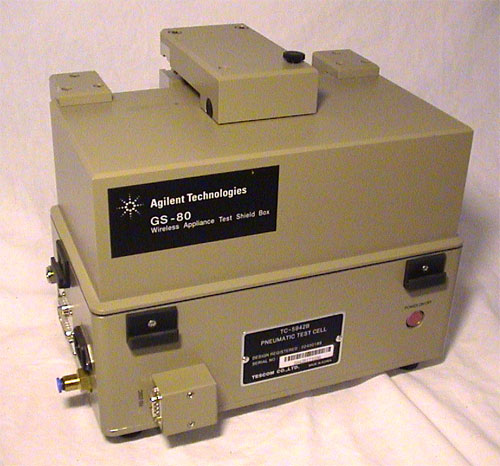

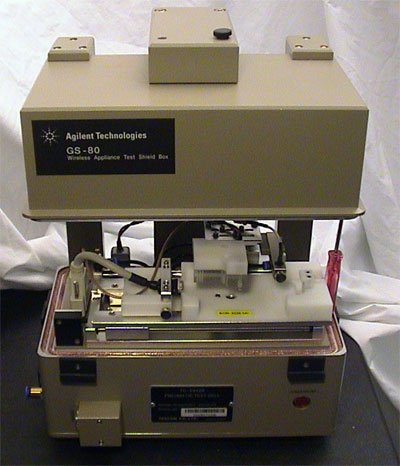

This a extremely high quality Agilent Shielded RF Test enclosure / fixture. The clam shell design is opened and closed pneumatically. This enclosures internal test space dimensions are 256(W) x 125(D) x 80(H) mm.

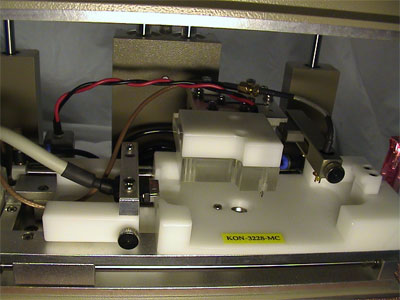

All of the internal fixtures can be removed to meet the users needs.


APPLICATIONS
RF interference isolation during compliance testing. This fixture could be easily modified to work with such instruments as:
HP 8560 & 8590 Series (Spectrum Analyzer)
Agilent E4400 Series (Spectrum Analyzer)
Agilent E7400 Series (EMC Analyzer)
As well as a wide range of other RF Test Equipment
Component / Material Testing: This unit could be easily modified to work with LCR Meters and Impedance Analyzers such as:
Agilent 4294A (Impedance Analyzer)
Agilent 4263B (LCR Meter)
Agilent 4284A (LCR Meter)
Agilent 4285A (LCR Meter)
As well as a wide range of other component and material analyzing products
Provide cable shielding for testing and servicing (Portable phones & PCB Ass'y)
Small Tx / Rx Device Isolated Testing
Ideal for R&D and Manufacturing
Please feel from to contact Ascent Concepts R&D lab to inquire about modifing this test fixture to your specific test and measurement needs.



FEATURES
Long Life. High RF Shielding > 80dB
Pneumatic and manual operation
EMI filters on all Data and DC lines connectors
RS-232C Controlled Open-Close
Customized RF and data connection and handset handler
Cellular and PCS band coverage


Electrical
Shielding >80dB, Leakage Test, DC - 2GHz

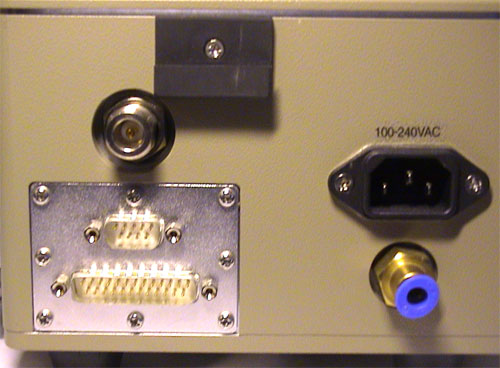

RF Connector: Type N Outside, SMA inside
RS-232C Connector (9pin)
D-Type Data Connector (9pin & 25pin), Double Filtered
Line Voltage: 100 to 240V AC

Working Space: 256(W) x 125(D) x 80(H) mm


Mechanical

Dimension: 330(W) x 235(D) x 261(H) mm
                 330(W) x 235(D) x 416(H) mm [Open state]
Weight Total :12kg

Equipment Notes:

This piece of equipment is in excellent condition. It was used as an Agilent technologies test fixture and as an Agilent gs-80 may have some additional features and modifications from a stock tc-5942b
Our R&D laboratory at Ascent Concepts could modify this test fixture for an LCR meter, Impedance or Material analyzers.
