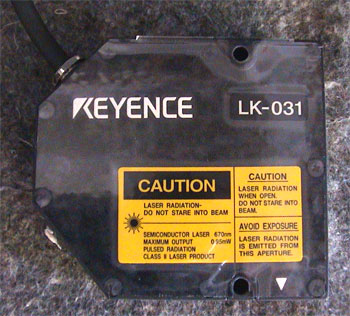

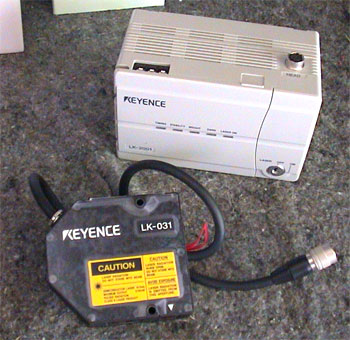

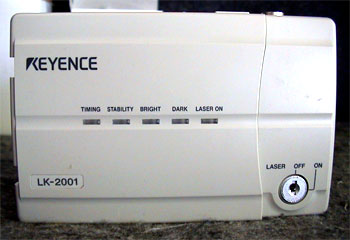

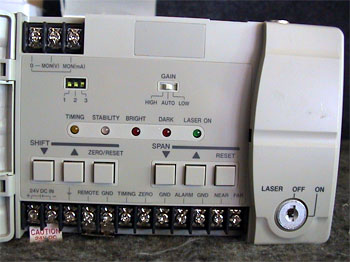

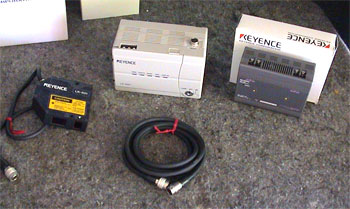

New Keyence LK-2001 & LK-031

Laser Displacement System

Matched Serial Numbers / Calibrated System

Characteristics:

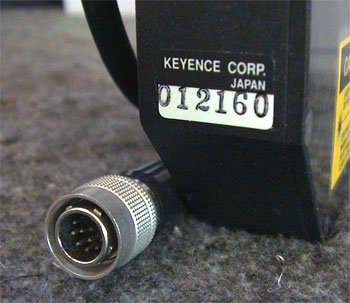

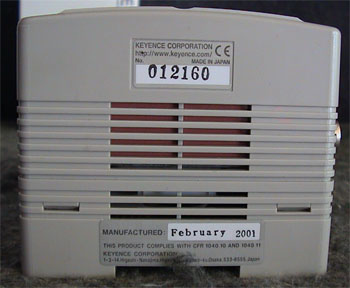

The LK-2001 and LK-031 are a matched pair with the same serial numbers.  They are calibrated together at Keyence.  These units can not be mixed and matched.

RETAIL PRICE FROM KEYENCE IS $4600.00 for both units and they can not be purchased separately.

Linearity of 0.1% of F.S. (All models)
Resolution of 1 m (LK-031)
30 m diameter beam spot (LK-031)
Ultra long measuring distance up to 750 mm (LK-long Series)*
Measurement unaffected by color, surface texture or stray light

Measuring range
High-precision (LK-031)
- 30 5 mm
Standard (LK-081)
- 80 5 mm
Long-distance (LK-501/503)
- 350 100 mm
- 500 250 mm
Description

Highly accurate measurement
Utilizing a newly developed CCD as the light-receiving element and a 32-bit ultra-high speed RISC processor for signal processing, the LK series provides highly accurate measurement regardless of target surface properties. The LK-031 delivers a resolution of 1 m and linearity of 0.1% of F.S.

Visible laser beam spot of 30 m diameter
KEYENCE's unique optical system minimizes lens aberration to give the LK-031 a minimum spot diameter of 30 m. This enables the surface contour of a target to be accurately measured.

Unbeatable maximum range of 750 mm (LK-long Series)NEW
In long range mode, the measuring range of 500 mm 250 mm provides the capability for almost any application.
Unbeatable maximum range of 750 mm

Stable measurement of various target surfaces
The patent-pending LFTC circuit enables measurement of multicolored or patterned targets. Low reflective targets, such as black rubber, can be measured without additional adjustment.

Sensor head is rated IP-67
Get accurate measurement even in harsh environmental conditions such as in the manufacturing process.

Measurement principle
The CCD laser displacement sensor uses a triangulation measurement system.

Conventional laser-displacement sensors employ a PSD (Position Sensitive Detector) as the light-receiving element. However, the LK series uses a CCD as the light-receiving element.
The light reflected by a target passes through the receiver lens that focuses the light on the PSD or CCD.
PSD-type sensors use the light quantity distribution of the entire beam spot on the PSD to determine the beam spot center and identify this as the target position. However, the distribution of light quantity is affected by the surface condition of the target, causing variations in measured values. The CCD detects the pixel where the peak value of the light quantity distribution of the beam spot identifies this as the target position. Therefore, the CCD enables stable, highly accurate displacement measurement, regardless of the light quantity distribution of the beam spot.

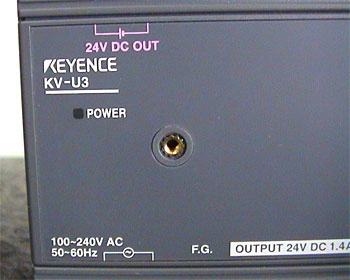

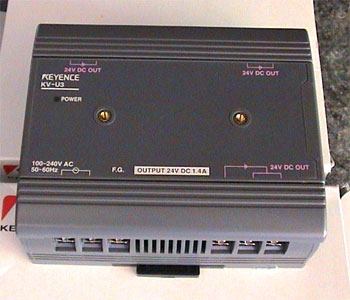

KV-U3:  24VDC Switching Power Supply

24VDC +/- 10% Voltage Output
1.4A Maximum Load
100-240 VAC Source Voltage



Warranty:

This item is sold with a 3 Day Satisfaction Guarantee on performance of the product.   So bid with confidence.  Since this is a new product, once it is removed from the packaging and installed - it is no longer new.  As such - we can not offer returns on the product because it does not meet specific technical needs.  Please do your research on the product functionality before you purchase.  As our many customers will attest, we will do our very best to resolve any customer problems. But our official policy is:

This item comes with a 3 day right of return policy.
All returns must be made within 3 days of receipt.
All warranties are void if the calibration / warranty seals are broken.
Equipment must be shipped correctly and returned with all accessories.
Customer is responsible for all shipping charges on returns.
Foreign Buyers please be aware: We offer no warranty or returns on items shipped outside the USA

Payment, Shipping & Bidding:

Buyer will pay $15.00 packing and shipping in the continental United States. Payments accepted are Paypal, cashiers checks and money orders only.  No international buyers unless Paypal verified.  Please feel free to contact us if you need other arrangements.

We will make every effort to ship within 24 hours of receipt of payment. We ship with FedEx & UPS only. We will be glad to ship with other carriers using the purchasers shipping account. Please contact us to make any special shipping arrangements. For shipping rate research, our shipping address is Boulder, CO USA ---- Zip Code is 80305.

Many of our auctions have a set packaging and shipping fee.  This set fee makes the transaction easier and allows the purchaser to send payment at once without having to wait for a shipping total.  This is our best guess on an unpackaged item.  Please consider the total with shipping when you are bidding.

Foreign buyers: Unless special provisions have been made, you are responsible for making your own shipping arrangements and all costs related to customs, duties & special packaging requirements. Please do not ask us to quote you international shipping rates. Use the address information above to research you own shipping rates. You can email sales@ascentconcepts (no spam) .com to get the packaging fee, package weight and size for your research. Items sold outside the USA are sold as is.

Bidders - with no feedback or less then 80% positive feedback must contact us through the eBay email system before placing a bid. We will reply through the same system, documenting that you have been approved to bid. If you do not follow these procedures, your bid will be cancelled.  All other bidders, bid with confidence.



About Us:

Ascent Concepts and Technologies is a Research & Development Lab. As a service to the companies and institutions we work with, we broker their excess equipment & act as application specialists on their new equipment needs. We are now offering quality used equipment to the public with the same level of professionalism and service.

Please feel free to email at thomasknox@ascentconcepts (no spam) .com or call Thomas @ 1-303-554-0307 with any Technical questions. Please feel free to email at waltwhite@ascentconcepts (no spam) .com or call Walt @ 1-720-276-8288 with any Shipping or Logistical questions. We make every effort to evaluate and guarantee our equipment. Although we do not provide NIST traceable calibration, we do have extensive in house calibration equipment and make every effort to test and verify performance on equipment we sell. However we do not warranty any items shipped outside the USA.
