NEW IAI Corporation Complete System

DS Controller & Intelligent Actuator

Medium Speed

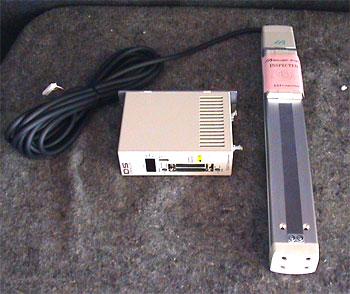

Both items shown are brand new in perfect physical and electrical condition.


The Intelligent Actuator Inc. DS System is an electromechanical alternative to air cylinders.
The Series offers capabilities that pneumatic air cylinders can't match, including:

Multiple positioning
Acceleration/deceleration programmability
Speed setting programmability
Programmable control

The Slider actuator is more of a DS actuator, controller, and teaching pendant. Traditional design, with the slider moving smoothly and programmably within the given stroke length.

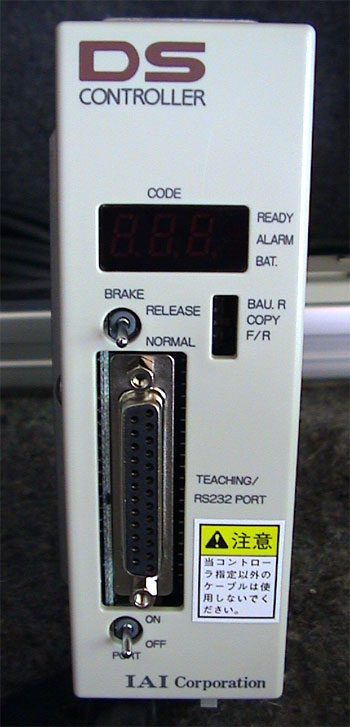

Controller Features

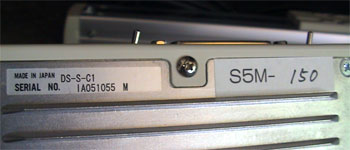

When it comes to compact design, overall size and price/performance, nothing compares with the DS-S-C1 single axis controller. Its features include:

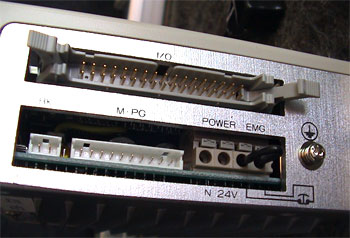

User I/O
External 24V DC power supply
Memory for 1,000 steps of programming
Positioning for up to 500 points
15 user inputs (standard)
6 user outputs (standard)

Controller Characteristics

Power Supply Voltage> DC24V +/-10%
CPU> Main: 32-bit RISC
Motor: 16-bit CISC
Memory Device> CMOS RAM
No. of Programs> 32
No. of Steps> 1000
No. of Positions> 500
User Inputs> 15
User Outputs> 6
Emergency Stop Terminal> Yes
Multi-Tasking Functions> 8
Actuator Control Commands> Yes
I/O Flag Control Commands> Yes
Timer Commands> Yes
Tag Commands> Yes
Subroutine Commands> Yes
Calculation Functions> Yes
Logic Functions> Yes
Comparison Commands> Yes
Position Data Commands> Yes
RS232C Baud Rate> 9600 - 19200
RS232C Connector> Built-in
RS232C Unit> Built-in
Brake Release Switch> Built-in

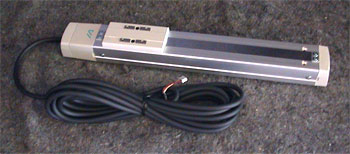

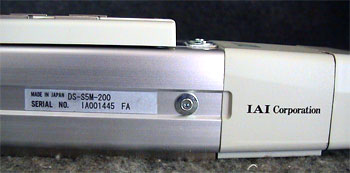

Slider Characteristics

Motor: 20W or 30W AC servo motor w/incremental optical encoder
Ballscrew Diameter: 10mm, 8mm
Ballscrew Lead: 12mm, 6mm, 3mm; 10mm, 5mm, 2.5mm
Frame Material: Now using aluminum instead of steel to lower weight and length.

Stroke length: 50mm ~ 600mm (50mm increments)
Max speed: 800mm/sec (31.5 in/sec)
Max payload: 12kg (26.4 lbs) horizontal
Repeatability: +/-0.02mm (+/-0.0008")



This item is sold with a 3 Day Satisfaction Guarantee.  So bid with confidence.
As our many customers will attest, we will do our very best to resolve any customer problems. But our official policy is:

This item comes with a 3 day right of return policy.
All returns must be made within 3 days of receipt.
All warranties are void if the calibration / warranty seals are broken.
Equipment must be shipped correctly and returned with all accessories.
Customer is responsible for all shipping charges on returns.
Foreign Buyers please be aware: We offer no warranty or returns on items shipped outside the USA

Payment, Shipping & Bidding:

Buyer will pay $20.00 packing and shipping in the continental United States. Payments accepted are Paypal, cashiers checks and money orders only.  No international buyers unless Paypal verified.  Please feel free to contact us if you need other arrangements.

We will make every effort to ship within 24 hours of receipt of payment. We ship with FedEx & UPS only. We will be glad to ship with other carriers using the purchasers shipping account. Please contact us to make any special shipping arrangements. For shipping rate research, our shipping address is Boulder, CO USA ---- Zip Code is 80305.

Many of our auctions have a set packaging and shipping fee.  This set fee makes the transaction easier and allows the purchaser to send payment at once without having to wait for a shipping total.  This is our best guess on an unpackaged item.  Please consider the total with shipping when you are bidding.

Foreign buyers: Unless special provisions have been made, you are responsible for making your own shipping arrangements and all costs related to customs, duties & special packaging requirements. Please do not ask us to quote you international shipping rates. Use the address information above to research you own shipping rates. You can email sales@ascentconcepts (no spam) .com to get the packaging fee, package weight and size for your research. Items sold outside the USA are sold as is.

Bidders - with no feedback or less then 80% positive feedback must contact us through the eBay email system before placing a bid. We will reply through the same system, documenting that you have been approved to bid. If you do not follow these procedures, your bid will be cancelled.  All other bidders, bid with confidence.


About Us:

Ascent Concepts and Technologies is a Research & Development Lab. As a service to the companies and institutions we work with, we broker their excess equipment & act as application specialists on their new equipment needs. We are now offering quality used equipment to the public with the same level of professionalism and service.

Please feel free to email at thomasknox@ascentconcepts (no spam) .com or call Thomas @ 1-303-554-0307 with any Technical questions. Please feel free to email at waltwhite@ascentconcepts (no spam) .com or call Walt @ 1-720-276-8288 with any Shipping or Logistical questions. We make every effort to evaluate and guarantee our equipment. Although we do not provide NIST traceable calibration, we do have extensive in house calibration equipment and make every effort to test and verify performance on equipment we sell. However we do not warranty any items shipped outside the USA.
