Datum Inc. Tymserve TS2210

Network Time Server

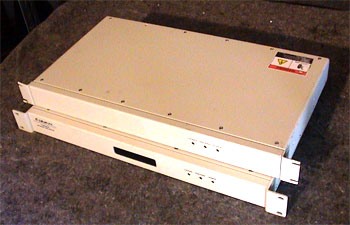

With Second LAN Unit



* Stand-alone NTP Time Server
* 1U Height, Rack-Mountable Unit
* Simple Network Management Protocol

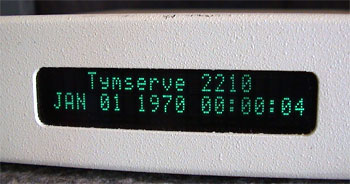

* Convenient Front Panel Display
* Versatile Input/Output
* Ethernet 10BaseT Interface
* Telnet and RS-232 Remote Programming
* IRIG Time Code Input/Output
* Two-Year Warranty

* Independent Time Acquisition From: GPS, IRIG, or Dial-up Service
* 1 PPS TTL/CMOS Output 10 MHz Output
* Highly Accurate
* Security (more secure timing source)
* Low Maintenance
* RSA KeonŽ Ready
* RSA SecurIDŽ Ready

TymServe 2100 simplifies the task of implementing and maintaining an enterprise network synchronization system, offers better timing accuracy, decreases security risk and provides a lower cost of ownership.

Network managers and system integrators appreciate the fact that the TymServe 2100 is a complete time server in a convenient, self-contained rack-mountable unit. Configuration can be done via the front panel keypad, the RS-232 console port or the 10BaseT network connections.

Uses UTC (Universal Coordinated Time), the international standard, to keep computer clocks accurate within 1/10th of a second per year.

Acquires UTC from a variety of sources, including GPS satellites, autodial to NIST (National Institute of Standards and Technology), and other methods. GPS: The GPS configuration offers a revolutionary concept in network synchronization. GPS satellites continually pass overhead providing an easily accessible source of UTC time for each remote campus equipped with a TymServe.

Distributes time within network via NTP (Network Time Protocol) with no need to breach the firewall.

Provides extra assurance, via MD5 authentication, that only authorized devices are accessing your systems via NTP.

Can be managed from an integrated management console. Outputs include NTP, IRIG, IPPS and Sysplex.

Easy to use
Allows user to setup and manage equipment with front panel switches, Telnet, SNMP-enabled console or the web. In addition, the unit has IRIG time code, 1 PPS and 10 MHz reference inputs and outputs. Network management tools include Simple Network Management Protocol (SNMP) with a custom MIB II extension, remote Telnet access, Dynamic Host Configuration Protocol (DHCP), and MD5 access authentication.

Cost Effective
Initial TymServe cost savings come from its simple configuration and installation relative to configuring a conventional workstation as a time server. Savings continue with the elimination of network synchronization management and software upgrade costs.

Equipment Notes:

The Main Unit powers up but is untested beyond that.  The Secondary LAN unit does not power up so please bid accordingly.


These items are sold as is.
