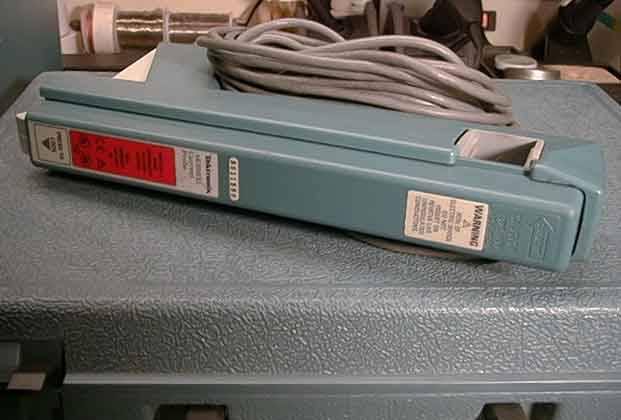

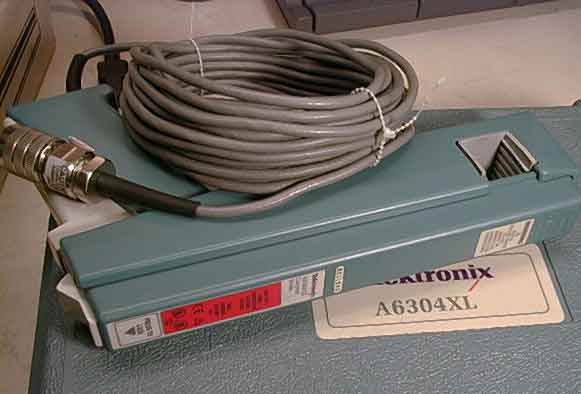

Tektronix A6304XL

Current Probe

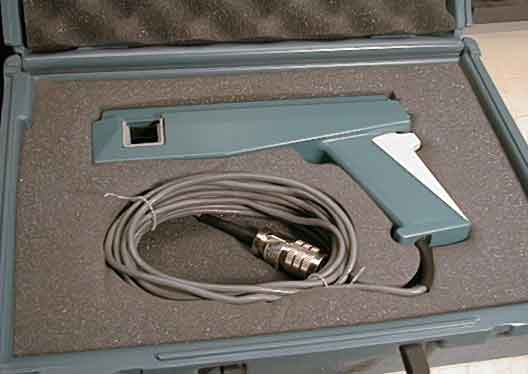

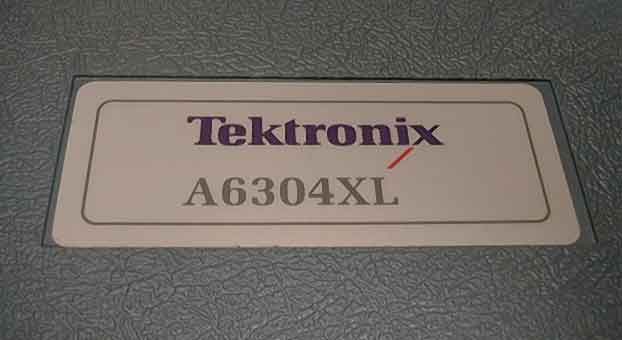

This unit comes in a factory hard case.  It is excellent physical and electrical condition.  This current catalog product is Tektronix's largest and most capable current probe.
A 6304XL
  • 8 Meter Cable
  • 500 Amps Continuous/700 Amps Peak
  • DC to 2 MHz


  • Motor Drives
  • Satellite Systems
  • Inverters
  • Transportation Systems
  • Power Supplies
  • Avionics

The XL probes are designed to operate with the AM503B and AM5030 Current Probe Amplifiers (not included).  The XL (for extra long leads) probes have eight-meter cables, which allow you to reach test points on large devices such as heavy duty motors or automobiles. In addition, connecting to test points on transportation platforms such as trains, ships or aircraft is much easier with the XL probes.

A6304XL is designed to clip onto conductors up to 21.1 mm (0.83 inches in diameter) and will measure continuous currents up to 500 amps and peak currents up to 700 amps.  The A6304XL has a bandwidth of DC to 2 MHz and is especially well suited for measurements on high-performance inverters, motor drives and other high current switch-mode control devices.




As our many customers will attest, we will do our very best to resolve any customer problems.  But our official policy is:

  • All items sold are guaranteed against D.O.A. only.
  • All claims must be made within 3 days of receipt.
  • All warranties are void if the calibration / warranty seals are broken.



Shipping Policy

Buyer will pay $25.00 packing and shipping in the continental United States.  We will make every effort to ship within 24 hours of receipt of payment.  We ship with FedEx only.  We will be glad to ship with other carriers using the purchasers shipping account.  Please contact us to make any special shipping arrangements. For shipping rate research, our shipping address is Boulder, CO USA ---- Zip Code is 80305.

Foreign buyers:  Unless special provisions have been made, you are responsible for making your own shipping arrangements and all costs related to customs, duties & special packaging requirements.  Please do not ask us to quote you international shipping rates.  Use the address information above to research you own shipping rates.  You can email waltwhite@ascentconcepts.com to get the packaging fee, package weight and size for your research.  Items sold outside the USA are sold as is.



 Payment Policy

We accept Credit Card payment through Paypal.   We accept Cashiers Check or Money Orders.
